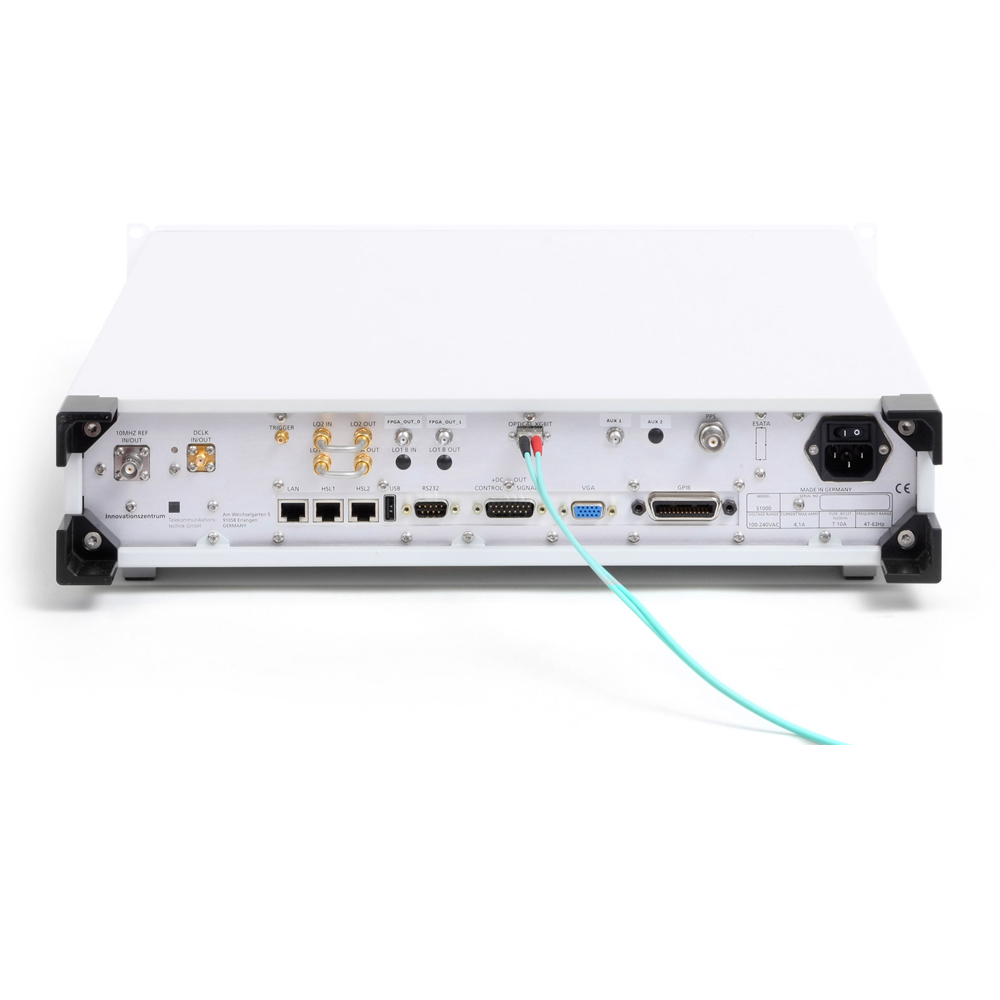

IZT S1000 / IZT S1010 High-Performance Signal Generator
Máy phát tín hiệu IZT S1000 / IZT S1010. Bộ phát tín hiệu IZT S1000 / IZT S1010. Máy tạo tín hiệu IZT S1000 / IZT S1010
One device – 31 Virtual Signal Generators of highest RF quality
Two phase-synchronous RF outputs for diversity testing
Versatile real-time impairment simulation
Modulators for Digital Radio and TV Standards
GNSS Constellation Simulator
Universal ARB function
Automated testing for development and production
Thông số kỹ thuật chi tiết
|
Technical specifications |
||
|
Frequency |
Range Resolution |
9 kHz – 3 GHz 0.001 Hz |
|
Instantaneous bandwidth |
9 kHz – 30 MHz 90 MHz – 2940 MHz |
30 MHz 120 MHz |
|
Reference |
Accuracy |
OCXO |
|
|
Ageing |
±5 x 10-8 per year |
|
|
Temperature stability |
< ±1 x 10-8 |
|
|
Warm-up time |
10 min |
|
Power level |
Maximum output power Resolution Uncertainty Range Dynamic range |
+20 dBm typical 0.1 dB ±0.5 dB: +10 dBm – -50 dBm; ±1.0 dB: below -50 dBm -134 dBm – +20 dBm (peak) > 75 dB typical |
|
Spectral purity |
Harmonics f > 30 MHz |
< -30 dBc at +10 dBm |
|
|
Harmonics f < 30 MHz |
< -40 dBc at +10 dBm |
|
|
Non harmonics > 30 MHz |
< -75 dBc typical |
|
|
Non harmonics < 30 MHz |
< -80 dBc typical |
|
Output IP3 |
< 30 MHz @ 10 dBm dualtone, 2 MHz spacing 100 MHz @ 10 dBm dualtone, 2 MHz spacing 1575 MHz @ 10 dBm dualtone, 2 MHz spacing 2332.5 MHz @ 10 dBm dualtone, 2 MHz spacing |
35 dBm typical 40 dBm typical 34 dBm typical 32 dBm typical |
|
DCLK IN |
|
|
Connector type |
SMA, female, 50 Ω |
|
Coupling |
AC; DC max 50 V |
|
Center frequency |
160 MHz |
|
Input level |
-25 dBm to +12 dBm > +4 dBm result in compression |
|
Input refl ection |s11| |
< -15 dB @ 100 MHz – 1000 MHz |
|
Impedance |
50 Ω |
|
DCLK OUT |
|
|
Connector type |
SMA, female, 50 Ω |
|
Coupling |
AC, DC max. 50 V |
|
Center frequency |
160 MHz |
|
Impedance |
50 Ω |
|
Output level |
+12 dBm (ON) -24 dBm (OFF) |
|
Waveform |
Square, Duty-Cycle = 50% ca. +2.0 Vpp @ 50 Ω |
|
Spurs, non harmonic |
< -90 dBc typical |
|
Phasenoise |
-90 dBc/Hz typical @ 10 Hz offset -102 dBc/Hz typical @ 100 Hz offset -128 dBc/Hz typical @ 1 kHz offset -146 dBc/Hz typical @ 10 kHz offset -154 dBc/Hz typical @ 100 kHz offset -155 dBc/Hz typical @ 1 MHz offset -155 dBc/Hz typical @ 10 MHz offset -155 dBc/Hz typical @ 30 MHz offset |
|
Technical values S1010-DC |
|
|
Voltage |
10 – 30 V DC |
|
Current |
Max. 40 A |
|
Security |
No polarity protection |
|
Cable diameter |
Min. 6 mm² |
|
Cable lenght |
Max. 4 m @ 6 mm² Max 6.6 m @ 10 mm² |
|
Max resistance of cable |
10 mΩ |
|
Reference IN/OUT |
|
|
Connector type |
BNC, female, 50 Ω |
|
Coupling |
AC; DC max 50 V |
|
Center frequency |
10 MHz |
|
Tuning range |
+/-5 Hz |
|
Input reflection |s11| |
< -20 dB @ 10 MHz – 200 MHz |
|
Input level max. |
+18 dBm |
|
Input level min. |
0 dBm |
|
Input leakage |
-70 dBm typical |
|
Output impedance |
50 Ω |
|
Output level |
+6.5 dBm |
|
Output waveform |
Square: -0.6 V to +0.6 V Duty-Cyle: 50 % @ 50 Ω |
System specifcation
Memory Extension
Memory Extension+
Operating system
Debian Linux 9 64 Bit
Windows 7 Professional 64 Bit
RAM
16 GB
16 GB
Storage HDD
4 x 3.5” Tray (removable)
2 x 12 TB Raid0 System
8 x 3.5” Tray (removable)
2 x 9 TB Raid5 System (by default) or
2 x 12 TB Raid0 System
4 x 2.5” Tray (removable)
System HDD
1 TB (removable)
500 GB (removable)
CPU
Intel core i7-4770S 4 x 3,1 GHz
Intel core i7-6700 4 x 4 GHz
Ethernet
4 x Gbit high-speed ports
6 x Gbit high-speed Ports
2 x optical 10 Gbit (optional)
2 x optical 10 Gbit (optional)
Interfaces
2 x USB 2.0 (front)
4 x USB 2.0 (back)
2 x USB 3.0 (back)
2 x USB 2.0 (front)
4 x USB 2.0 (back)
4 x USB 3.0 (back)
2 x RS232 Serial Ports (back)
1 x RS232 Serial Ports (back)
Display interface
1 x VGA (up to 1920 x 1200)
1 x HDMI (up to 1920 x 1080)
1 x DVI-D (up to 1920 x 1080)
2 x Display Port (up to 4096 x 2304)
1 x DVI-D (up to 2560 x 1600)
Graphic
Intel HD 4000/5000 Graphics
Intel HD Graphics 530
Display
24” TFT
24” TFT
Input
USB keyboard, USB mouse
USB keyboard, USB mouse
MTBF > 36,500 h (Telcordia SR-332, Issue 3) > 45,000 h (Telcordia SR-332, Issue 3)
@ 35°C environmental temperature @ 35°C environmental temperature
Input voltage range
100 V – 240 V (AC)
100 V – 240 V (AC)
AC supply frequency
50 Hz – 60 Hz
50 Hz – 60 Hz
Max. input current
1.4 A (100 V) – 0.58 A (240 V)
2.0 A (100 V) – 0.83 A (240 V)
Dimensions (W x H x D)
435 mm x 88 mm (2 RU) x
550 mm (+30 mm incl. grips)
426 mm (+52 mm for ears) x 178 mm
(4 RU) x 490 mm (+50 mm incl. grips)
Weight
13.5 kg
