Product advantages

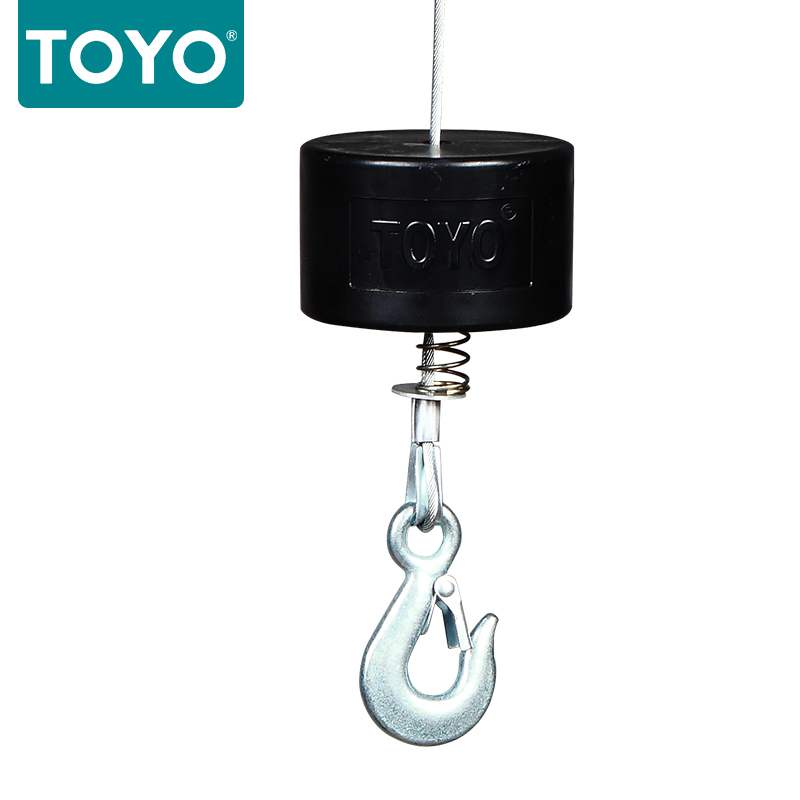

1.Non-rotating wire rope.

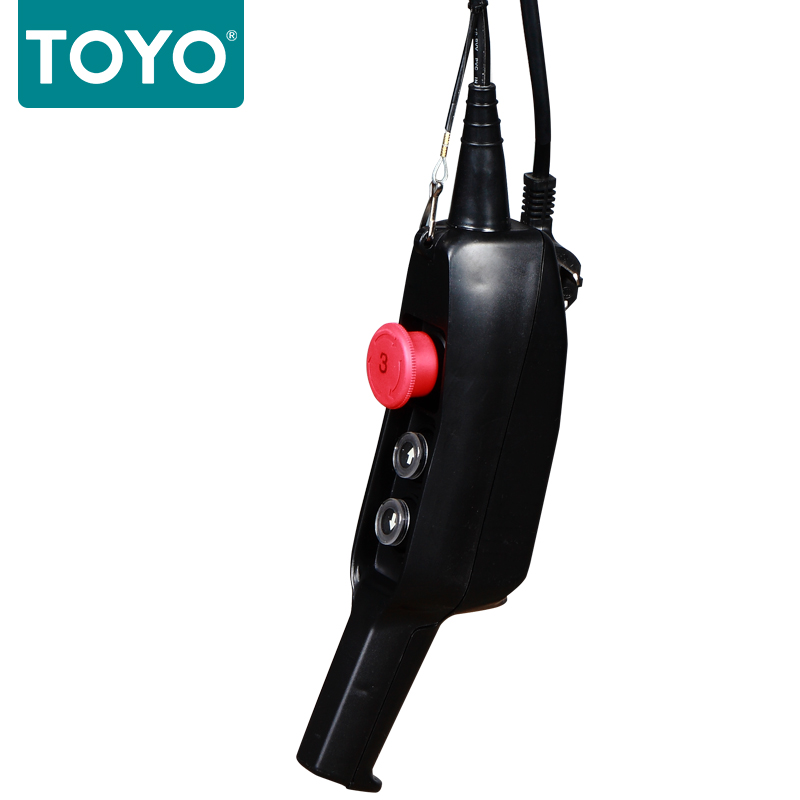

2.Emergency stop switch option.
3.Optional wireless remote control.
4.80% spare parts are produced in our factory
5.Spare parts in ABS plastic is anti-oil, anti-corrosion and safety.
6.More than 1000pcs daily output for prompt delivery.
7.With copper motor, which has good electrical conductivity and insulativity.
Features
220/230V, 50/60Hz
IP54 Protection Grade
With Thermal Prevention Device
With Upper And Lower Limited Switch
CE, GS European Quality Certificates
|

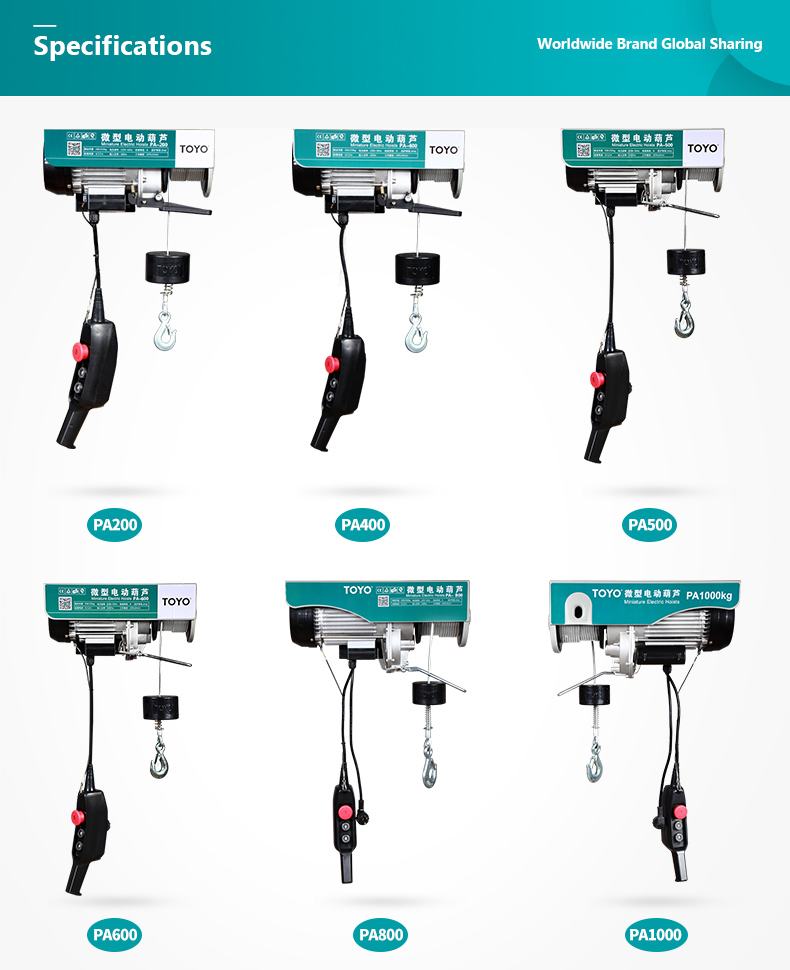

Model
|
Method of Use |
Rated Volt (v) |
Input Power (w) |
Rated Capacity (kg) |
Lifting Speed (m) |
Lifting Height (m) |
Qty/CTN (pcs) |
Packing Size (mm) |
G.W/N.W (KG) |
|
PA200 |
Single-Hook |
AC 220/230V 50/60Hz |
480 |
100 |
10 |
12 |
2 |
38×32×25 |
22.5/22 |
|
Double-Hook |
200 |
5 |
6 |
||||||
|
PA250 |
Single-Hook |
510 |
125 |
10 |
12 |
23/22 |
|||
|
Double-Hook |
250 |
5 |
6 |
||||||
|
PA300 |
Single-Hook |
600 |
150 |
10 |
12 |
23.5/23 |
|||
|
Double-Hook |
300 |
5 |
6 |
||||||
|
PA400 |
Single-Hook |
950 |
200 |
10 |
12 |
45×34×27 |
33/32 |
||
|
Double-Hook |
400 |
5 |
6 |
||||||
|
PA500 |
Single-Hook |
1020 |
250 |
10 |
12 |
33.5/32.5 |
|||
|
Double-Hook |
500 |
5 |
6 |
||||||
|
PA600 |
Single-Hook |
1200 |
300 |
10 |
12 |
35/34 |
|||
|
Double-Hook |
600 |
5 |
6 |
||||||
|
PA800 |
Single-Hook |
1300 |
400 |
8 |
12 |
38/37 |
|||
|
Double-Hook |
800 |
4 |
6 |
||||||
|
PA1000 |
Single-Hook |
1600 |
500 |
8 |
12 |
1 |
54×25×32 |
32/31 |
