Feature
Electronic compensator ensures more quick self leveling.
When using for outdoor, the receiver during the work can be used over 80m of radius.
Manual slop for Y axis: This function can replace can replace rotation laser within 50 Meter ( must work with detector )
3 sections laser brightness adjustment: Users can adjust brightness according to the distance of working area for saving energy.
Build-in repair recording software system.
LED indication for tilt direction.
LED indicates Leveling and Leveling is ready (Using laser gleam or sound alarm function is at your option. )
Low power indication with Red LED.(Sound alarm function is at your option. )
Specifications

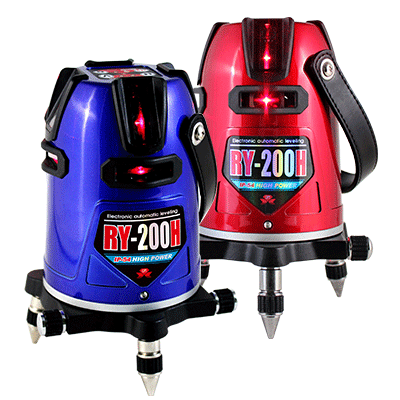

Model No. | RY-200H |
Laser beam | 4V4H1D |
Light sources | 635nm laser diode, down point 650nm |
Anti-water class | IP-54 |
Laser safety class | Class 2M |
Accuracy | ±1mm/10m |
Self-leveling range | ±4° |
Working range | Radius 50m ( with detector ) |
Power supply | 4 x AA alkaline batteries |
Mounting thread | 5/8" X 11, ISO standard |
Operating temperature | -10℃~+40℃ |
Size | Φ140x208mm |
Weight | 1.2kg |
